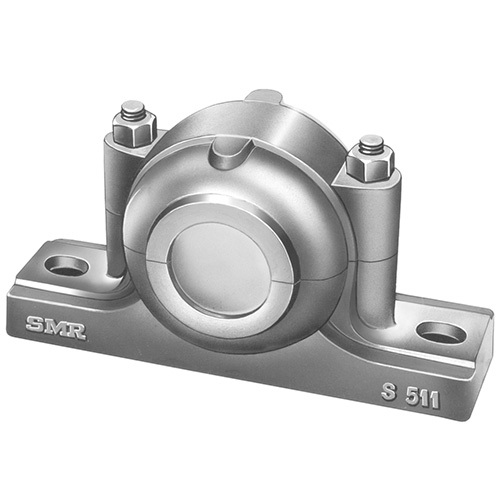

S Series Bearing Housing

Name: S Series Bearing Housing
Brand: SANGAM ENTERPRISES
Price: 1000 INR
Availability: InStock

1000 INR/Unit

Get a Price/Quote

Product Details:

Thickness 45 mm
Retainer Steel
Inner Diameter 30 mm
Outer Diameter 62 mm
Structure Split Housing Unit
Seals Type Double Lip Seal
Number Of Rows Single Row
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

S Series Bearing Housing Price And Quantity

Price 1000 INR/Unit
Minimum Order Quantity 100 Unit

S Series Bearing Housing Product Specifications

Structure Split Housing Unit
Seals Type Double Lip Seal
Bearing Type S Series
Material Other
Color Light Brown (Base)
Lubrication Type Other
Precision Rating P6
Number Of Rows Single Row
Cage Material Steel
Load Capacity Dynamic 39 kN, Static 28 kN
Inner Diameter 30 mm
Retainer Steel
Bore Size 200mm
Warranty Yes
Thickness 45 mm
Outer Diameter 62 mm
Use Industrial

Mounting Method Bolt-On
Surface Finish Anti-Corrosion Painted
Operating Temperature Range -20C to 120C
Housing Shape Plummer Block
Replaceable Inserts Yes
Compatible Shaft Diameter 30 mm

S Series Bearing Housing Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

SMR S Series Bearing Housings are heavy-duty split plummer block housings designed for reliable bearing support in industrial applications requiring strength, easy maintenance, and long operational life. Engineered with a simple yet robust construction, the S Series provides a cost-effective and dependable solution for supporting rotating shafts under moderate to heavy loads.

Suitable for both ball bearings and spherical roller bearings, SMR S Series housings are widely used across various industries for smooth and efficient machinery operation.

Key Features of SMR S Series Bearing Housings

Heavy-duty split plummer block housing design
Suitable for:

Ball bearings
Spherical roller bearings

Shaft diameter range from 20 mm to 200 mm
Suitable for bearings with:

Tapered bores
Cylindrical bores

Compatible with:

Direct shaft mounting
Adapter sleeve mounting

Equipped with high-performance felt seals for effective contamination protection
Suitable for grease lubrication systems
Manufactured from high-grade grey cast iron for superior durability and strength
Optional S.G. iron (ductile iron) and cast steel construction available on request
Integrated eye bolts for easy handling (from size 524/620 onwards)
Supplied with T-bolts for secure cap-to-base tightening and improved operational stability

Robust & Maintenance-Friendly Design

SMR S Series plummer block housings are designed with a split construction that allows:

Easy installation and alignment
Quick bearing inspection and replacement
Reduced maintenance downtime
Simplified servicing procedures

Their rugged housing design provides excellent support for rotating shafts operating under industrial loads and varying operating conditions.

Reliable Sealing & Lubrication

The S Series housings are equipped with durable felt seals that help protect bearings against:

Dust and dirt contamination
Moisture ingress
Lubricant leakage

The grease lubrication arrangement ensures:

Efficient bearing lubrication
Reduced friction and operating temperatures
Improved bearing service life
Lower maintenance requirements

Flexible Bearing Mounting Arrangements

SMR S Series housings are designed to accommodate:

Bearings mounted directly on shafts
Bearings mounted using adapter sleeves
Bearings with cylindrical bores on request

This flexibility makes the S Series suitable for a wide variety of industrial machinery and rotating equipment.

Applications of SMR S Series Bearing Housings

SMR S Series housings are widely used in:

Conveyor systems
Material handling equipment
Mining and cement industries
Steel and rolling mills
Industrial fans and blowers
Agricultural machinery
Pumps and compressors
General engineering and process industries

Cost-Effective Industrial Bearing Solution

SMR S Series Bearing Housings combine:

Heavy-duty construction
Easy maintenance
Reliable sealing performance
Flexible mounting options
Long operational life

These features make them an ideal and economical solution for industrial bearing housing applications requiring dependable performance and reduced maintenance costs.

S Series

Split plummer block housings.
Shaft diameter range 20-200 mm.
Suitable for ball bearings and spherical roller bearings.
Felt seals.
Grease lubrication.
High grade grey cast iron. S.G. iron or cast steel can be supplied on request.
Eye bolts for easy handling (from size 524/620).
Equipped with T-bolts for cap-base tightening.

SMR S-series housings are heavy-duty plummer blocks with a sense of simplicity & basic designing meant for easy installation & low maintenance. SMR S-series provides a cost effective solution for industrial bearing housing requirements. SMR can provide S-series for bearings with cylindrical bores also.

Engineered for Reliability

This S Series Bearing Housing stands out due to its sturdy construction and attention to detail. The anti-corrosion finish, steel retainer, and double lip seals provide superior protection in industrial settings, while the split housing design allows for effortless insert replacement and routine maintenance.

Precision and Adaptability

Achieving a P6 precision rating and supporting single row bearings, this housing is compatible with 30 mm shafts. Its dynamic and static load capacities of 39 kN and 28 kN, respectively, guarantee long-term performance suited for various machinery and equipment in demanding environments.

User-Centric Installation and Maintenance

With its bolt-on mounting method and easy-to-replace inserts, users can conveniently install, service, and maintain the unit. Grease lubrication ensures consistent operation and minimal downtime, making this bearing housing a smart choice for continuous industrial use.

FAQ's of S Series Bearing Housing:

Q: How is the S Series Bearing Housing installed?

A: The S Series Bearing Housing utilizes a bolt-on mounting method, allowing for secure and straightforward installation onto machinery frames or bases. This design ensures stability and easy alignment during setup.

Q: What are the key benefits of the anti-corrosion painted surface finish?

A: The anti-corrosion painted surface finish protects the bearing housing from rust and environmental degradation, thereby extending its operational life and reliability in harsh industrial settings.

Q: When should the replaceable inserts be changed, and what is the process?

A: Replaceable inserts should be changed during routine maintenance if wear or damage is detected. The split housing structure makes the process simple: unbolt and open the housing, remove the old insert, and fit a new one-without dismantling the entire assembly.

Q: Where is this bearing housing primarily used?

A: This S Series Bearing Housing is primarily utilized in industrial settings, such as manufacturing plants or heavy machinery, where robust shaft support, precision, and reliable protection against contaminants are vital.

Q: What is the operating temperature range for this bearing housing?

A: The unit operates efficiently within a temperature range of 20C to 120C, making it suitable for a wide variety of industrial environments and applications.

Q: How does the double lip seal enhance performance?

A: The double lip seal provides superior protection against grease leakage and prevents contaminants such as dust and moisture from entering the housing, resulting in improved bearing life and performance.

Q: What warranty coverage is provided for the S Series Bearing Housing?

A: This bearing housing comes with a manufacturer's warranty, offering users peace of mind and assurance of product quality and support in case of manufacturing defects.
