Versatile and Durable Design

The SN 30 Series Bearing Housing is meticulously engineered using high-grade cast iron for strength and longevity. Its corrosion-resistant coating protects against harsh industrial environments, while the precisely machined finish ensures dependable alignment. With a foot-mounted structure, the housing guarantees secure installation on various machine frames. The removable cap allows for quick inspection and maintenance, reducing machine downtime.

Efficient Maintenance and Operation

Maintenance is simplified thanks to the split-type housing with a removable top cap and a re-lubrication provision, making it easy to service bearings without full disassembly. Double lip seals keep contaminants away from lubricated surfaces, improving operational life. An anti-rotation pin provides added stability, while optional end covers further shield components from dust and debris, supporting reliable long-term performance.

FAQ's of SN 30 Series Bearing Housing:

Q: How is the SN 30 Series Bearing Housing installed and mounted?

A: This housing features a foot-mounted design that allows for secure bolting to foundational supports in various machinery. The anti-rotation pin ensures a stable installation, preventing movement even during heavy operation.

Q: What industrial applications can this bearing housing be used for?

A: It is suitable for a wide spectrum of industrial applications such as conveyors, fans, mining machinery, and other heavy-duty equipment, thanks to its rugged construction and compatibility with a range of bearing types.

Q: When should the re-lubrication provision be used?

A: Routine maintenance schedules dictate when re-lubrication is needed, but the provision allows easy access for grease lubrication without dismantling the housing. This keeps bearings running smoothly and extends operational lifespan.

Q: Where can I find compatible bearings for the SN 30 Series housing?

A: The housing is designed for compatibility with standard single-row roller and ball bearings from the SN 500 and SN 600 series. Refer to size specifications or consult your supplier to select the correct bearing for your application.

Q: What are the benefits of the removable cap and optional end covers?

A: The removable cap facilitates quick inspection and maintenance, reducing downtime, while optional end covers provide extra protection against contaminants, helping preserve bearing life in dusty or dirty environments.

Q: How does the corrosion-resistance coating improve performance?

A: The special coating shields the cast iron housing from rust and corrosion, ensuring reliable performance and longevity even in challenging, moisture-prone workplaces.

Q: Are there specific temperature limits for operating this housing?

A: The SN 30 Series Bearing Housing operates effectively in temperatures ranging from -20C to 120C, making it suitable for most industrial settings in India and abroad.

Product Brochure

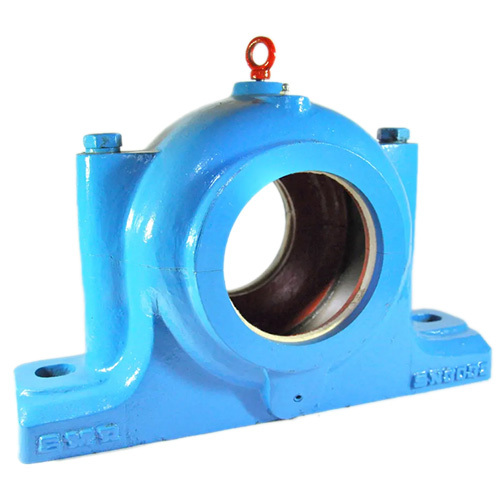

SN 30 Series Bearing Housing

Get a Price/Quote

Product Details:

Number Of Rows Single row
Retainer Cast iron body with separate bearing retainer
Seals Type Double lip seal
Load Capacity Heavy duty, as per bearing installed
Thickness Standard housing thickness (varies by size)
Outer Diameter Corresponds to bearing size (consult specification)
Cage Material Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SN 30 Series Bearing Housing Product Specifications

Lubrication Type Grease lubricated, lubrication hole provided
Structure Split type housing structure
Bore Size 30 mm to 150 mm (varies by model)
Bearing Type Pillow block housing for roller/ball bearings
Use Industrial applications
Outer Diameter Corresponds to bearing size (consult specification)
Thickness Standard housing thickness (varies by size)
Load Capacity Heavy duty, as per bearing installed
Seals Type Double lip seal
Inner Diameter 30 mm to 150 mm (varies by model)
Precision Rating Standard, ISO certified
Cage Material Steel
Number Of Rows Single row
Material High-grade cast iron
Retainer Cast iron body with separate bearing retainer

Shaft Diameter Range 30 mm to 150 mm
Housing Cap Removable cap for easy maintenance
Housing Surface Finish Smooth, machined finish
Anti-Rotation Pin Included for secure mounting
Interchangeability Compatible with SN 500 and SN 600 series
Application Conveyors, fans, mining, machinery
End Cover Availability Optional end covers available
Mounting Type Foot mounted
Maintenance Feature Provision for re-lubrication
Weight Varies (2.5 kg to 24 kg as per model)
Protection Corrosion resistance coating
Color Industrial grey
Operating Temperature Range -20C to 120C

Product Description

SN Series Plummer Blocks

The SMR SN Series is a standard, horizontally split plummer block housing designed for moderate load and speed applications where reliability, ease of maintenance, and cost efficiency are important.

It is a widely accepted housing design used in stable operating conditions where grease lubrication and straightforward installation are sufficient.

What the SN Series Is Best Suited For

The SN Series is typically selected when:

Operating loads and speeds are moderate
The application environment is relatively clean
Grease lubrication is preferred
A proven, uncomplicated housing design is required

This makes the SN Series a practical choice for many general industrial installations.

How the Housing Works

The split construction allows the bearing to be installed, inspected, or replaced without removing the shaft, simplifying both initial installation and routine maintenance.
The housing is designed to provide axial freedom to the bearing, allowing for shaft expansion during operation.
When axial location is required, it can be achieved by fitting one or two locating rings, depending on the application.

Bearings, Lubrication & Sealing

The SN Series is primarily intended for adapter sleeve-mounted spherical roller bearings and is designed for grease lubrication.
Standard felt seals provide basic protection against dust and contaminants, making the series suitable for clean and temperate environments.
Oil lubrication and heavy sealing arrangements are not intended for this series.

Material & Compatibility

SMR SN Series plummer blocks are manufactured from graded cast iron and follow established international dimensional standards, allowing easy interchangeability with standard SN housings. SN series housings can be manufactured in S.G. Iron and Cast Steel if required.

A Simple Selection Note

Choose the SN Series when you need a reliable and economical plummer block for moderate operating conditions.
For higher loads, enhanced sealing, or more demanding environments, SMR offers SNA, SNH, and SNL series housings.

Technical Details

Exact dimensions, shaft sizes, bearing compatibility, and accessory options are provided in the SMR SN Series catalogue.

SMR can assist in confirming the most suitable housing and bearing arrangement for your application.
